Rovers North

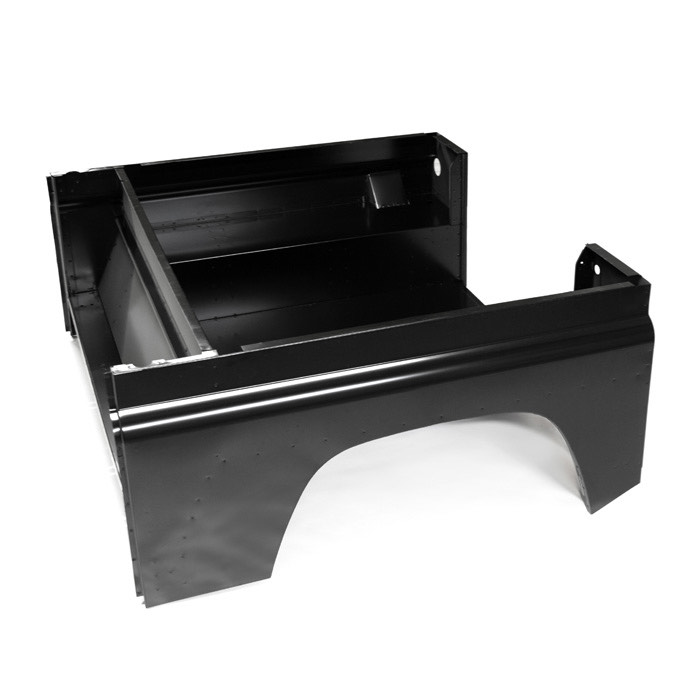

New Land Rover Genuine body assembly with bulkhead for 90 models with rear fuel tank. This assembly includes floor plate with underside support braces, rear lamp panels, complete inner and outer rear side wing panels. Features a forward bulkhead panel that separates the front seat compartment from rear body area. Electrostatically primed in E-Coat Satin black. Ready for paint. Made in the UK.

FITS: Defender 90 all models with forward bulkhead and rear fuel tank 1994-2006. All Puma 90 utility models without rear seats 2007-2016

NOTE: 1985-1993 Defender 90 rear body assembly with side fuel tank are no longer available from Land Rover. These bodies have the fuel filler assembly located immediately behind the RH front door. Fitting the AQA710520 body assembly to early 90s will require fabricating a filler extension tube to transfer fuel from the rear filler neck forward to the side tank, or upgrading the chassis and fuel tank to the later and safer rear tank style. All early 90 chassis are available with a rear fuel tank by special order. Please inquire.

Additional Images:

Fits These Vehicles:

Model:	Notes:
Defender 90	1994-2016 except Puma Station Wagon
