Designed for easy installation and simple operation. When not in use, it locks securely away on top of the wheel arch with minimal intrusion into the load area. A Locking Latch is released with a simple one-handed operation using the lever on the back of the frame. The weight of the seat is supported by a gas strut allowing it to effortlessly drop down and lock into place. A second lever on the side of the seat is lifted to allow the seatback to be raised into position.
When both seats are in their open position there is only a small gap between them. In order for passengers to get in and out, one seat must be folded up.
It features a rake adjustable seat back and height-adjustable headrest. The seats also have a handy rear storage pocket, whilst still leaving plenty of room behind the seats for bags.

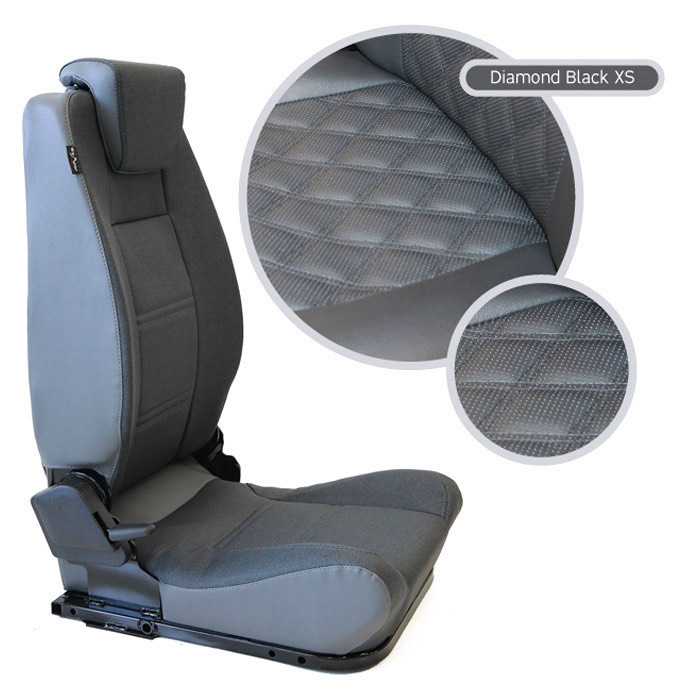

The seat styling matches Exmoor Premium Second Row options. Available in all of our standard trim styles as well as bespoke leather options that can be tailored to your specific requirements.
SEAT BELTS
A three-point seat belt kit is supplied with the seat. The buckle mounts to the seat frame as an integral part and a separate inertia reel mounts to the vehicle. You may need to purchase additional hardware to attach the belt to the vehicle.
If your vehicle is a hardtop, you will need a Seat Belt Rear Top Mounting Bracket. These are left or right-handed heavy-duty brackets. If you have a soft-top vehicle you will need a suitable heavy-duty bar set with integrated seat belt mounts. COMPATABILITY
The seat is suitable for Defender 90 and 110 vehicles with square wheel arches.
NOTE- that this seat will Not fit in post-2007 Puma vehicles with the cut-away wheel arch. However, many Puma vehicles incorporated the square arches and if your defender has these the seats will fit. If you are unsure please contact our sales team for knowledgeable advice.
INSTALLATION
Installation of the seat requires drilling of 10 holes. 4 in the floor, 2 in the vertical face of the wheel box, and 4 in the top face of the wheel box. Once fitted in the vehicle you attached the seat to the base frame and attached the gas strut. A detailed fitting guide is supplied with the seat. Please ensure you read the installation advice carefully before fitting.
Additional Images:
YouTube Video: VIDEO
Fits These Vehicles:
Model: Notes: Defender 90 2000 - onwards with square wheel arches Defender 110 with square wheel arches
