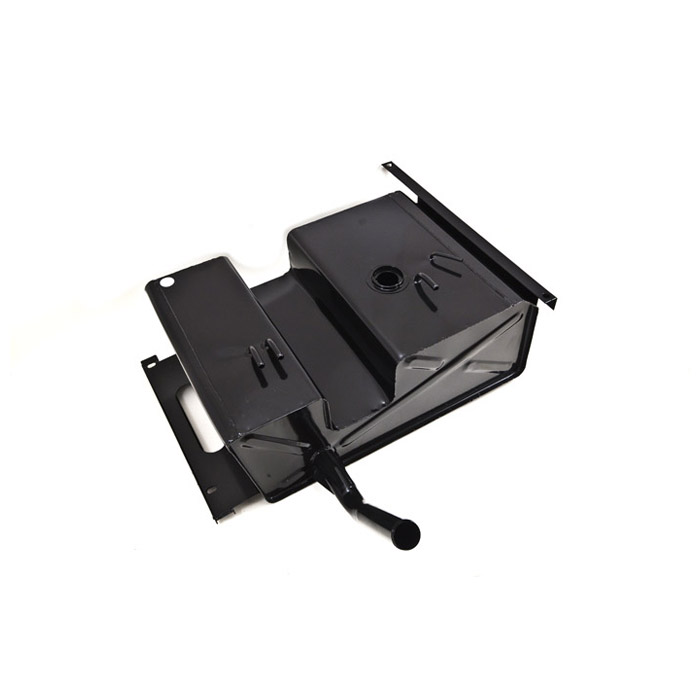

Rear mount fuel tank. 19.5 gallon capacity for 109. This is the latest version of the rear 109 fuel tank. All earlier versions are no longer available. Will fit all Petrol and Diesel models. Earlier models will require updating to the late twist lock style fuel sending unit which is negative earth only.
FITS: This is a direct replacement for 109 Series III Suffix C 1975 - 1983. Earlier models (1959 - 1975) require updating fuel sender unit from screw in type to twist lock type. Using the following parts: Fuel sender PLH652, Rubber gasket RNC887 and Twist lock retainer PLC886 or RNC886
NOTE: PLH652 fuel sender will not work with positive earth fuel gauge. It is possible to modify original positive earth sending unit to work with twist lock retainer.
Additional Images:
Fits These Vehicles:
| Model: | Notes: |
|---|
| Series II | 109 Station Wagon requires modifications |
| Series IIA | 109 Station Wagon requires modifications |
| Series III | 109 all models 1975 -1983. Earlier require modifications |
